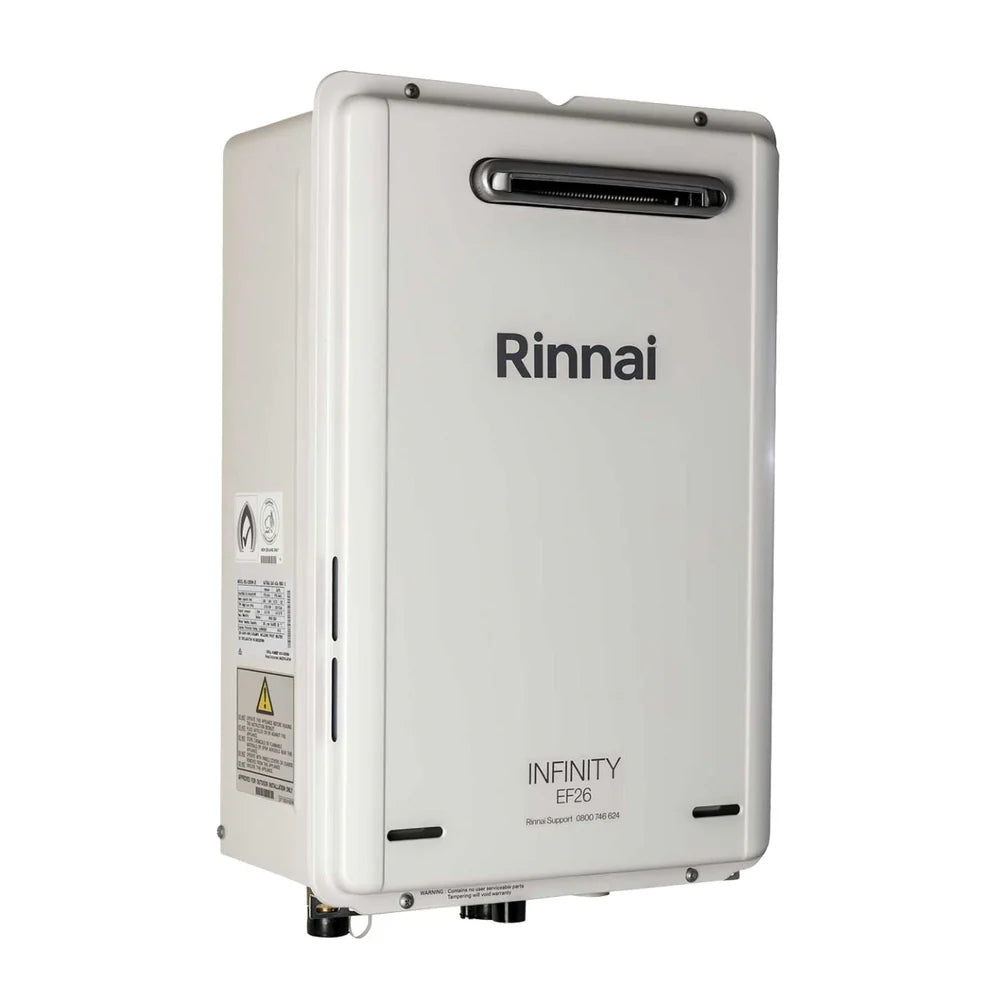

Rinnai INFINITY® EF26 external

Title

Endless hot water, when you need it.
Continuous hot water solution for residential applications

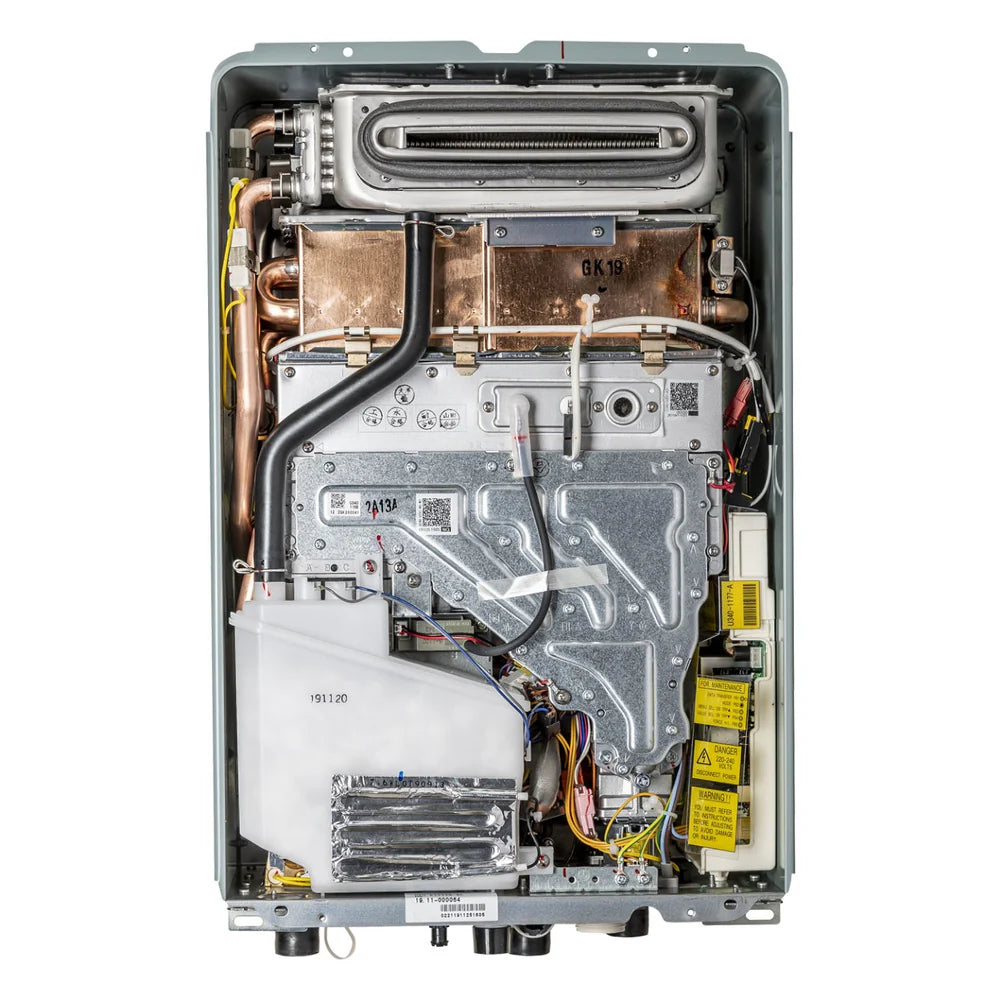

The Rinnai EF26 is a condensing gas continuous flow hot water heater which captures waste heat from the flue gas, through the use of a secondary heat exchanger, to help heat the water with less energy.

  •  Delivery of 26 L/min, perfect for NZ homes
  • RRP is now within 10% of the Rinnai INFINITY A26
  • 30% lighter and smaller than the EF24 model
  • Uses 11% less energy than the Rinnai INFINITY A26
  • Inbuilt condensate neutraliser
Get a Quote
Phone Us

DETAILS

Suitable for

  • external residential applications only
  •  mains and medium pressure systems

Hard or acidic water will need to be treated to use this product.


Not suitable

  • as a spa or swimming pool heater
  • for hydronic applications
  • as a gas boost for solar connections1

1 Temperature cannot be set high enough, use our HD models instead.

Specifications

Input 16.3-175 MJ/h

Output 44.5 kW

Efficiency 92%



Gas type

Available for Natural Gas or LPG, specify at the time of purchase

Colour

White

Factory preset temperature

55 °C

Model code and REU number

EF26 → E2626W-ZK

Hot water capacity

26 L/min (1560 L/h) at a 25 °C rise

Exhaust system

Forced flue

Frost protection

Fitted as standard. Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.

Ignition system

Direct electronic ignition

Line pressure (min.)

NG - 1.13kPa, LPG - 2.75 kPa

Line pressure (max.)

3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa). In the case of commercial metering, (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming pressure down.

Power consumption

Normal 63 W, standby 2 W, and automatic frost protection 92 W

Pressure relief

Valve opens at 2060 kPa Valve closes at 1479 kPa

Noise level

50 dB(A) approx. Some people are susceptible to low level noise. This needs to be considered if locating an appliance near a bedroom.

Safety devices

Flame failure
Boil-dry protection
Overheat protection
Fusible link
Pressure relief valve
Combustion fan
RPM check

Water supply

 Nominal operating pressure: 220-1000 kPa Minimum operating water flow will depend on setpoint and inlet temp.

Weight

18 kg

Dimensions



Compliance

Energy Safety Supplier Declaration of Compliance: Declaration number - 1923220199

Factory preset temperature

55 °C

Downloads

FAQ

How often should I service my gas appliance?

We recommend that Rinnai gas appliances are serviced every two years. This can extend the operating life of your appliance, and also ensures it is running at peak efficiency - saving you and your family money.


There are so many similar products around, what does Rinnai provide that the others don't?

  • As the world’s largest gas appliance manufacturer, Rinnai is widely regarded as the industry leader.
  • Rinnai products are known throughout the world for their superior quality, safety, technology and sophisticated control systems, all factories are ISO 9001 and/or ISO 14001 certified.
  • We have an established 40 year history in New Zealand.
  • Rinnai are happy to advise that we now have an IANZ accredited Test Lab for MEPS testing on Hot Water Cylinders. The lab uses the latest in test equipment and can test all type of Hot Water Cylinders for MEPS heat loss testing.


I'm not really clear on any option and it's all getting a bit too confusing, what should I do?

We realise there's a lot of information out there. Water heating is important and it's better to spend the time up front deciding on what you need and what's important.

We have an experienced customer service team that can walk you through the process. For those more complicated projects we also have a free specification service.


For continuous flow units you promote the use of remote controllers, why?

Digital controllers allow you to select the exact temperature of the hot water at the outlet. This has a number of benefits:

  • Safety, especially if you have young children, the hot water can be pre-set to a child-safe level
  • No need to mix hot and cold water, this reduces the changes in water temperature when another tap in the building is turned on
  • You use your continuous flow unit more efficiently as less gas is required to heat water to 40 °C (typical shower temperature) than at 55 °C (which is the default temperature without controllers)
  • Highlights any problems (disruption in gas supply etc.) by displaying error codes on the controller


I’m trying to factor costs and then compare what’s best. I can find out the cost of the different products but what about installation costs?

Installation costs are difficult to provide as every installation is different. Factors such as the length of pipe required, whether you have accessories fitted, how far away you live and choosing an internal or an external unit all influence the overall cost.

 If you’re interested in a Rinnai hot water heating solution, we highly recommend you contact a plumber/gas fitter who will be able to explain all the options to you.
